WSJT-X FT8 Using CI-V Cable Combined with Ham Radio Deluxe

In FT-8, Icom 7300, Softwareby K0PIR12 Comments


The last part of this series with Ham Radio Deluxe is adding WSJT-X FT8 to it. In this setup I’m using the CI-V cable for rig (Icom 7300) control in WSJT-X as opposed to using Ham Radio Deluxe as the rig in WSJT-X. There are advantages doing it this way. See the video below.


WSJT-X is a popular program for JT65, JT9 and the most popular mode is FT8. In the video below you’ll see WSJT-X FT8. WSJT-X is also a very easy program to setup and operate, especially if you are using a radio like the Icom 7300 or Icom 7610 that has built-in sound capabilities. I have videos and articles on WSJT-X and there are 3 or 4 good ways to integrate it with Ham Radio Deluxe.

Getting the most out of your radio?

Please join our growing Icom 7300/7610 community.

I agree to have my personal information transfered to MailChimp ( more information )

Receive e-mail notifications of new articles. I will never give away, trade or sell your email address. You can unsubscribe at any time.

wsjt-x hrd integrating

WSJT-X FT8 Logging to HRD Logbook

In this configuration I’m using QSO forwarding in HRD Logbook. It works very well. See my article Using the Icom 7300 with NEW Ham Radio Deluxe and WSJT-X.

Multiple ways to Integrate WSJT-X with Ham Radio Deluxe

  1. Using two cables (it works well with other logging programs as well). The USB cable for HRD rig control and the CI-V cable for WSJT-X rig control.
  2. One USB cable. Get HRD up and running with the USB cable and using it for rig control in HRD. WSJT-X uses Ham Radio Deluxe as the Rig in it’s settings.
  3. One USB cable (preferred by many). Same as #2, but close HRD rig control leaving HRD Logbook open. The USB cable is used for Rig control in WSJT-X.
  4. One USB cable. Use a virtual serial port emulator (splitter) to split the COM port so HRD Rig Control and WSJT-X can control the radio.

We will be completeing #1 in the video below.

I have been using two cables since I got the Icom 7300 and it works very well. See my article and video: N3FJP ACLog, WSJT-X, JTAlert A Powerful Combination

Probably the easiest way to use WSJT-X FT8 is to use it as a stand alone program. It has it’s own internal logging. I have an article here: WSJT-X FT8 and the Icom 7300 the Easy Way!

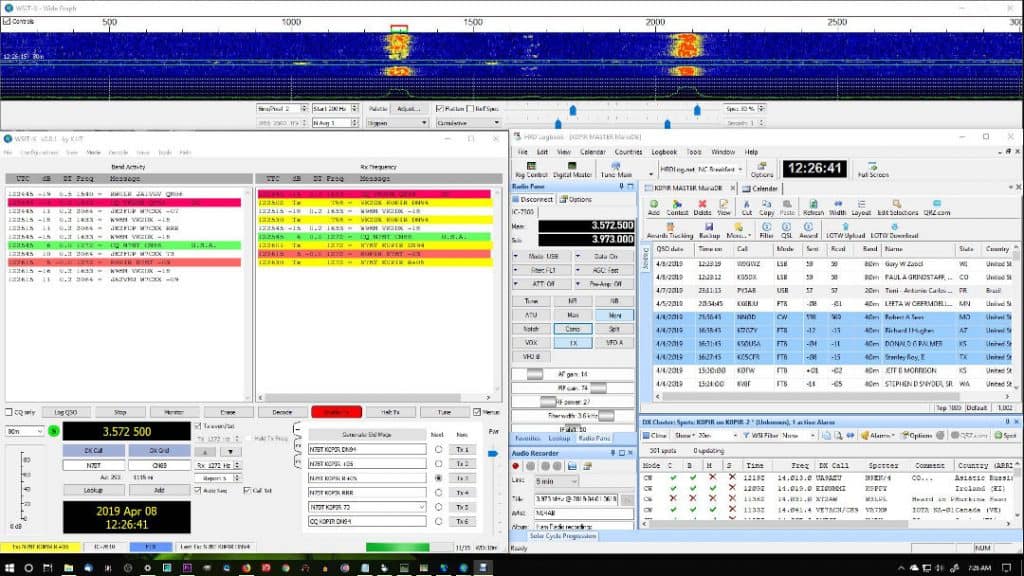

WSJT-X and HRD Logbook Screen Captures

Icom 7300 and Icom 7610 Screen Captures

If you are using either of the latest Icom radios you’ll need to use “Unlink from [REMOTE]. See my Icom 7300 screen captures and Icom 7610 screen captures.



Many Hams use JT-Alert and it can be added to this easily. Just download and install JT-Alert. When I use JT-Alert I set it up to log into HRD Logbook, therefore disabling QSO Forwarding in HRD Logbook.

Thank you

If you have any questions, please ask them here. I prefer the comment section here or in YouTube over e-mail because your comments and questions will help others as well.

Thank you for subscribing to this website. I appreciate the comments, questions and suggestions. You can follow me on TwitterFacebookInstagram and YouTube if you have those.

73 – Rich, K0PIR


WSJT-X Download

Ham Radio Deluxe

Icom 7300 Ham Radio Deluxe v6.5 Rig Control Quick Start

Ham Radio Deluxe Digital Master 780 DM780 Custom Look

Digital Master 780 DM780 CW Decode

Digital Master 780 DM780 CW Send CW Interface – How To


  1. I’ve had WSJT-X working for weeks. Suddenly, WSJT-X quit decoding stations. I couldn’t figure out the problem. All the configuration was correct. I recovered the computer back in time several weeks, and WSJT-X still couldn’t decode any stations. I then searched and found the solution. The time of day has to be close to the correct time of day. My time of day was off about 15 to 20 seconds. There’s software called “nistime-32bit” that will automatically keep your computer time of day correctly set. Fixing my computer’s time of day problem fixed the WSJT-X decoding problem!
