Elecraft KX2 and WSJT-X Easy Setup

Sometimes all we need is a little QRP transceiver, a weak signal mode and a good antenna. In comes the Elecraft KX-2, WSJT-X and a random wire. It can be used successfully in the field or at home (Ham Shack Portable). Although CW is preferred by many, you’ll find more opportunity to make short contacts (QSLs) using FT8. However, Morse code is more exciting because there’s conversation and more human interaction. The Elecraft KX2 is well suited for CW ops. I think it’s the best backpacking/SOTA HF transceiver around.

elecraft kx2 wsjt-x

Sabrent USB Sound Card

Elecraft KX2 WSJT-X

With the Elecraft KX2 transceiver I am using a Elecraft KXUSB serial cable, Sabrent USB Sound Card, two 3.5mm stereo male-male audio cables, an HP stream laptop running WSJT-X version 2.0.

Getting the most out of your radio?

Please join our growing Icom 7300/7610 community.

I agree to have my personal information transfered to MailChimp ( more information )

Receive e-mail notifications of new articles. I will never give away, trade or sell your email address. You can unsubscribe at any time.

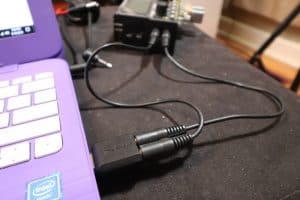

Sabrent USB Connections to KX2: Sabrent Mic In to Elecraft KX2 Phones. Sabrent Speaker Out to KX2 Mic In.

The antenna I am using inside the Ham Shack is a 80′ random wire with a 9:1 UNUN.

K0PIR Suggested KX2 Settings ( See Video Below):

Receiver and Transmitter
  • MODE: DATA A (WSJT-X will assist, but verify it is Data A mode and correct FIL width)
  • NB: OFF
  • NR: OFF
  • PRE: OFF
  • RF Gain: 0
  • FIL BW: 4 kHz
  • FIL Center: 1.5 kHz
  • AF: 2-10
  • AGC MD: OFF (See: How to Save Your Ears When AGC is OFF)
  • AGC LIM: 20
  • MIC GAIN: 0-50 (4 bars of ALC on transmit
  • PWR: 5 to 7 watts
  • MICBIAS: OFF ( may not be necessary to turn OFF)

My WSJT-X settings:

  • Rig: KX2
  • PTT: CAT
  • Mode: Data/Pkt
  • Split: Fake It

Elecraft KX2 Connections to HP Stream Laptop

Elecraft KX2 Settings for Digital Modes Data A Video

Thank you

More to come on WinKeyer 3 and RTTY FSK. Post your thoughts below in the comment section.

If you have any questions, comments or solutions, please comment below. I prefer the comment section here or in YouTube over e-mail because your comments and questions will help others as well.

Thank you for subscribing to this website. You can also follow me on TwitterFacebookInstagram and YouTube.

73,

Rich, K0PIR
